EmbeddedMethod UI

Learn how to use the EmbeddedMethod UI embedded component to add the ability to securely store a payment profile or execute a sale
Applies to:Developers

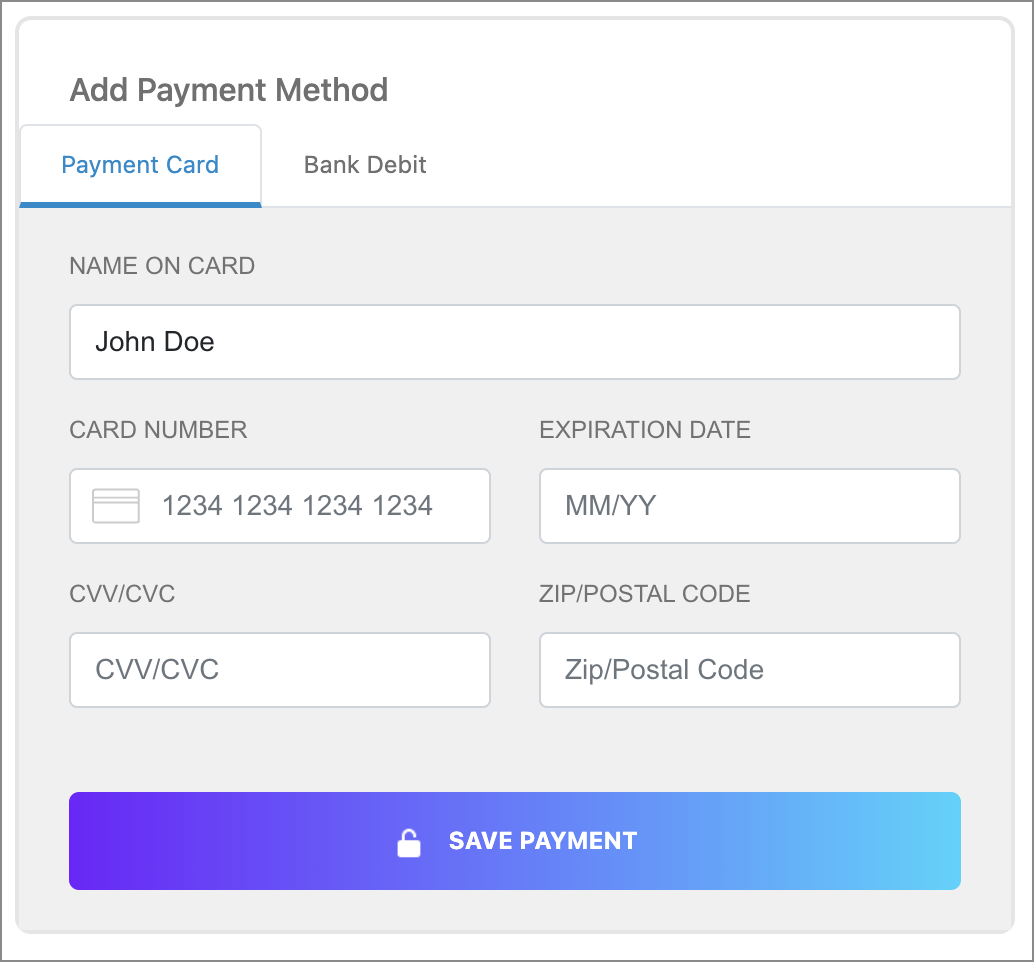

Use the EmbeddedMethod component to capture a payment method or make a sale using any payment method. This is the most flexible and customizable component Payabli offers to developers.


This component is supported in the Playground. Use the Embedded Component Playground to edit and design embedded components in real time, and export the code to use in your own site or app.

Usage

This section shows how to use the EmbeddedMethod UI component in your project. Use the interactive demo to see how the component works, then follow the configuration walkthrough to set it up in your project.

See Library URLs for important information about embedded components library URLs.

Interactive demo

This demo shows the component in action with transaction processing and visual feedback. When the component processes a transaction, the demo displays the JSON response.

Embedded content from https://files.buildwithfern.com/payabli.docs.buildwithfern.com/2025-10-27T17:06:37.243Z/snippets/demos/embedded-method.html

EmbeddedMethod UI Demo

Loading content...

Configuration walkthrough

The interactive walkthrough displays code examples alongside step-by-step explanations.

Loading walkthrough content

Loading walkthrough...

Loading walkthrough...

/// Include the Payabli Script

First, include the Payabli embedded component script in your HTML. This loads the core PayabliComponent class that powers all embedded components. Including <meta charset="UTF-8"> in the <head> element prevents problems with special characters such as ‘á’ or ‘ñ’.

1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6</head>
7<body>
8  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
9</body>
10</html>

/// Create the Container and Tab Structure

Add a container element where the embedded component will render. The id attribute becomes the rootContainer in your configuration. Create tabs to switch between card, ACH, and RDC payment methods.

-19
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6</head>
7<body>
8  <h1>Payment Form</h1>
9  <div class="payment-container">
10    <div class="tabs">
11      <button class="tab active" data-method="card">Payment Card</button>
12      <button class="tab" data-method="ach">Bank Debit</button>
13      <button class="tab" data-method="rdc">Check Capture</button>
14    </div>
15    <div class="form-content">
16      <div id="pay-component-1"></div>
17      <button id="submit-btn" class="hidden">Process Payment</button>
18    </div>
19  </div>
20
21  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
22</body>
23</html>

/// Add Basic Styling

Add CSS styles for the tabs to handle active and focus states.

-53
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <div class="payment-container">
57    <div class="tabs">
58      <button class="tab active" data-method="card">Payment Card</button>
59      <button class="tab" data-method="ach">Bank Debit</button>
60      <button class="tab" data-method="rdc">Check Capture</button>
61    </div>
62    <div class="form-content">
63      <div id="pay-component-1"></div>
64      <button id="submit-btn" class="hidden">Process Payment</button>
65    </div>
66  </div>
67
68  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
69</body>
70</html>

/// Configure Card Payment Method

Create the configuration object for card payments. The token must be a public API token.

-159
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <div class="payment-container">
57    <div class="tabs">
58      <button class="tab active" data-method="card">Payment Card</button>
59      <button class="tab" data-method="ach">Bank Debit</button>
60      <button class="tab" data-method="rdc">Check Capture</button>
61    </div>
62    <div class="form-content">
63      <div id="pay-component-1"></div>
64      <button id="submit-btn" class="hidden">Process Payment</button>
65    </div>
66  </div>
67
68  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
69  <script>
70    let payComponent;
71
72    const cardConfig = {
73      type: "methodEmbedded",
74      rootContainer: "pay-component-1",
75      token: "your-public-api-token",
76      entryPoint: "your-entry-point",
77      defaultOpen: "card",
78      temporaryToken: false,
79      card: {
80        enabled: true,
81        amex: true,
82        discover: true,
83        visa: true,
84        mastercard: true,
85        jcb: true,
86        diners: true,
87        inputs: {
88          cardHolderName: {
89            label: "NAME ON CARD",
90            size: 12,
91            row: 0,
92            order: 0
93          },
94          cardNumber: {
95            label: "CARD NUMBER",
96            size: 6,
97            row: 1,
98            order: 0
99          },
100          cardExpirationDate: {
101            label: "EXPIRATION",
102            size: 6,
103            row: 1,
104            order: 1
105          },
106          cardCvv: {
107            label: "CVV",
108            size: 6,
109            row: 2,
110            order: 0
111          },
112          cardZipcode: {
113            label: "ZIP CODE",
114            size: 6,
115            row: 2,
116            order: 1
117          }
118        }
119      },
120      functionCallBackSuccess: function (response) {
121        // This callback covers both 2XX and 4XX responses
122        console.log(response);
123        switch (response.responseText) {
124          case "Success":
125            // Tokenization was successful
126            alert(`Success: ${response.responseData.resultText}`);
127            break;
128          case "Declined":
129            // Tokenization failed due to processor decline or validation errors
130            // Recommend reinitialization of the component so that the user can try again
131            // with different card data
132            alert(`Declined: ${response.responseData.resultText}`);
133            payComponent.payabliExec("reinit");
134            break;
135          default:
136            // Other response text. These are normally errors with Payabli internal validations
137            // before processor engagement
138            // We recommend reinitializing the component.
139            // If the problem persists, contact Payabli to help debug
140            alert(`Error: ${response.responseText}`);
141            payComponent.payabliExec("reinit");
142            break;
143        }
144      },
145      functionCallBackError: function(errors) {
146        console.log("Payment error:", errors);
147        alert("Payment processing error occurred");
148        payComponent.payabliExec("reinit");
149      },
150      functionCallBackReady: function(data) {
151        const btn = document.getElementById("submit-btn");
152        if (data[1] === true) {
153          btn.classList.remove("hidden");
154        } else {
155          btn.classList.add("hidden");
156        }
157      }
158    };
159  </script>
160</body>
161</html>

/// Configure ACH Payment Method

Create the configuration object for ACH payments. The token must be a public API token.

-243
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <div class="payment-container">
57    <div class="tabs">
58      <button class="tab active" data-method="card">Payment Card</button>
59      <button class="tab" data-method="ach">Bank Debit</button>
60      <button class="tab" data-method="rdc">Check Capture</button>
61    </div>
62    <div class="form-content">
63      <div id="pay-component-1"></div>
64      <button id="submit-btn" class="hidden">Process Payment</button>
65    </div>
66  </div>
67
68  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
69  <script>
70    let payComponent;
71
72    const cardConfig = {
73      type: "methodEmbedded",
74      rootContainer: "pay-component-1",
75      token: "your-public-api-token",
76      entryPoint: "your-entry-point",
77      defaultOpen: "card",
78      temporaryToken: false,
79      card: {
80        enabled: true,
81        amex: true,
82        discover: true,
83        visa: true,
84        mastercard: true,
85        jcb: true,
86        diners: true,
87        inputs: {
88          cardHolderName: {
89            label: "NAME ON CARD",
90            size: 12,
91            row: 0,
92            order: 0
93          },
94          cardNumber: {
95            label: "CARD NUMBER",
96            size: 6,
97            row: 1,
98            order: 0
99          },
100          cardExpirationDate: {
101            label: "EXPIRATION",
102            size: 6,
103            row: 1,
104            order: 1
105          },
106          cardCvv: {
107            label: "CVV",
108            size: 6,
109            row: 2,
110            order: 0
111          },
112          cardZipcode: {
113            label: "ZIP CODE",
114            size: 6,
115            row: 2,
116            order: 1
117          }
118        }
119      },
120      functionCallBackSuccess: function (response) {
121        // This callback covers both 2XX and 4XX responses
122        console.log(response);
123        switch (response.responseText) {
124          case "Success":
125            // Tokenization was successful
126            alert(`Success: ${response.responseData.resultText}`);
127            break;
128          case "Declined":
129            // Tokenization failed due to processor decline or validation errors
130            // Recommend reinitialization of the component so that the user can try again
131            // with different card data
132            alert(`Declined: ${response.responseData.resultText}`);
133            payComponent.payabliExec("reinit");
134            break;
135          default:
136            // Other response text. These are normally errors with Payabli internal validations
137            // before processor engagement
138            // We recommend reinitializing the component.
139            // If the problem persists, contact Payabli to help debug
140            alert(`Error: ${response.responseText}`);
141            payComponent.payabliExec("reinit");
142            break;
143        }
144      },
145      functionCallBackError: function(errors) {
146        console.log("Payment error:", errors);
147        alert("Payment processing error occurred");
148        payComponent.payabliExec("reinit");
149      },
150      functionCallBackReady: function(data) {
151        const btn = document.getElementById("submit-btn");
152        if (data[1] === true) {
153          btn.classList.remove("hidden");
154        } else {
155          btn.classList.add("hidden");
156        }
157      }
158    };
159
160    const achConfig = {
161      type: "methodEmbedded",
162      rootContainer: "pay-component-1",
163      token: "your-public-api-token",
164      entryPoint: "your-entry-point",
165      defaultOpen: "ach",
166      temporaryToken: false,
167      ach: {
168        enabled: true,
169        checking: true,
170        savings: true,
171        inputs: {
172          achAccountHolderName: {
173            label: "ACCOUNT HOLDER NAME",
174            placeholder: "Account Holder Name",
175            floating: false,
176            size: 6,
177            row: 0,
178            order: 0
179          },
180          achRouting: {
181            label: "ROUTING NUMBER",
182            placeholder: "123456789",
183            floating: false,
184            size: 6,
185            row: 1,
186            order: 0
187          },
188          achAccount: {
189            label: "ACCOUNT NUMBER",
190            placeholder: "Account Number",
191            floating: false,
192            size: 6,
193            row: 1,
194            order: 1
195          },
196          achAccountType: {
197            label: "ACCOUNT TYPE",
198            floating: false,
199            size: 6,
200            row: 0,
201            order: 1
202          }
203        }
204      },
205      functionCallBackSuccess: function (response) {
206        // This callback covers both 2XX and 4XX responses
207        console.log(response);
208        switch (response.responseText) {
209          case "Success":
210            // Tokenization was successful
211            alert(`Success: ${response.responseData.resultText}`);
212            break;
213          case "Declined":
214            // Tokenization failed due to processor decline or validation errors
215            // Recommend reinitialization of the component so that the user can try again
216            // with different card data
217            alert(`Declined: ${response.responseData.resultText}`);
218            payComponent.payabliExec("reinit");
219            break;
220          default:
221            // Other response text. These are normally errors with Payabli internal validations
222            // before processor engagement
223            // We recommend reinitializing the component.
224            // If the problem persists, contact Payabli to help debug
225            alert(`Error: ${response.responseText}`);
226            payComponent.payabliExec("reinit");
227            break;
228        }
229      },
230      functionCallBackError: function(errors) {
231        console.log("Payment error:", errors);
232        alert("Payment processing error occurred");
233        payComponent.payabliExec("reinit");
234      },
235      functionCallBackReady: function(data) {
236        const btn = document.getElementById("submit-btn");
237        if (data[1] === true) {
238          btn.classList.remove("hidden");
239        } else {
240          btn.classList.add("hidden");
241        }
242      }
243    };
244  </script>
245</body>
246</html>

/// Configure RDC Payment Method

Create the configuration object for RDC (Remote Deposit Capture) payments. The token must be a public API token.

-278
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <div class="payment-container">
57    <div class="tabs">
58      <button class="tab active" data-method="card">Payment Card</button>
59      <button class="tab" data-method="ach">Bank Debit</button>
60      <button class="tab" data-method="rdc">Check Capture</button>
61    </div>
62    <div class="form-content">
63      <div id="pay-component-1"></div>
64      <button id="submit-btn" class="hidden">Process Payment</button>
65    </div>
66  </div>
67
68  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
69  <script>
70    let payComponent;
71
72    const cardConfig = {
73      type: "methodEmbedded",
74      rootContainer: "pay-component-1",
75      token: "your-public-api-token",
76      entryPoint: "your-entry-point",
77      defaultOpen: "card",
78      temporaryToken: false,
79      card: {
80        enabled: true,
81        amex: true,
82        discover: true,
83        visa: true,
84        mastercard: true,
85        jcb: true,
86        diners: true,
87        inputs: {
88          cardHolderName: {
89            label: "NAME ON CARD",
90            size: 12,
91            row: 0,
92            order: 0
93          },
94          cardNumber: {
95            label: "CARD NUMBER",
96            size: 6,
97            row: 1,
98            order: 0
99          },
100          cardExpirationDate: {
101            label: "EXPIRATION",
102            size: 6,
103            row: 1,
104            order: 1
105          },
106          cardCvv: {
107            label: "CVV",
108            size: 6,
109            row: 2,
110            order: 0
111          },
112          cardZipcode: {
113            label: "ZIP CODE",
114            size: 6,
115            row: 2,
116            order: 1
117          }
118        }
119      },
120      functionCallBackSuccess: function (response) {
121        console.log(response);
122        switch (response.responseText) {
123          case "Success":
124            alert(`Success: ${response.responseData.resultText}`);
125            break;
126          case "Declined":
127            alert(`Declined: ${response.responseData.resultText}`);
128            payComponent.payabliExec("reinit");
129            break;
130          default:
131            alert(`Error: ${response.responseText}`);
132            payComponent.payabliExec("reinit");
133            break;
134        }
135      },
136      functionCallBackError: function(errors) {
137        console.log("Payment error:", errors);
138        alert("Payment processing error occurred");
139        payComponent.payabliExec("reinit");
140      },
141      functionCallBackReady: function(data) {
142        const btn = document.getElementById("submit-btn");
143        if (data[1] === true) {
144          btn.classList.remove("hidden");
145        } else {
146          btn.classList.add("hidden");
147        }
148      }
149    };
150
151    const achConfig = {
152      type: "methodEmbedded",
153      rootContainer: "pay-component-1",
154      token: "your-public-api-token",
155      entryPoint: "your-entry-point",
156      defaultOpen: "ach",
157      temporaryToken: false,
158      ach: {
159        enabled: true,
160        checking: true,
161        savings: true,
162        inputs: {
163          achAccountHolderName: {
164            label: "ACCOUNT HOLDER NAME",
165            placeholder: "Account Holder Name",
166            floating: false,
167            size: 6,
168            row: 0,
169            order: 0
170          },
171          achRouting: {
172            label: "ROUTING NUMBER",
173            placeholder: "123456789",
174            floating: false,
175            size: 6,
176            row: 1,
177            order: 0
178          },
179          achAccount: {
180            label: "ACCOUNT NUMBER",
181            placeholder: "Account Number",
182            floating: false,
183            size: 6,
184            row: 1,
185            order: 1
186          },
187          achAccountType: {
188            label: "ACCOUNT TYPE",
189            floating: false,
190            size: 6,
191            row: 0,
192            order: 1
193          }
194        }
195      },
196      functionCallBackSuccess: function (response) {
197        console.log(response);
198        switch (response.responseText) {
199          case "Success":
200            alert(`Success: ${response.responseData.resultText}`);
201            break;
202          case "Declined":
203            alert(`Declined: ${response.responseData.resultText}`);
204            payComponent.payabliExec("reinit");
205            break;
206          default:
207            alert(`Error: ${response.responseText}`);
208            payComponent.payabliExec("reinit");
209            break;
210        }
211      },
212      functionCallBackError: function(errors) {
213        console.log("Payment error:", errors);
214        alert("Payment processing error occurred");
215        payComponent.payabliExec("reinit");
216      },
217      functionCallBackReady: function(data) {
218        const btn = document.getElementById("submit-btn");
219        if (data[1] === true) {
220          btn.classList.remove("hidden");
221        } else {
222          btn.classList.add("hidden");
223        }
224      }
225    };
226
227    const rdcConfig = {
228      type: "methodEmbedded",
229      rootContainer: "pay-component-1",
230      token: "your-public-api-token",
231      entryPoint: "your-entry-point",
232      defaultOpen: "rdc",
233      temporaryToken: false,
234      card: { enabled: true },
235      rdc: {
236        enabled: true,
237        amount: 100,
238        inputs: {
239          rdcAccountHolderName: {
240            label: "ACCOUNT HOLDER NAME",
241            placeholder: "Account Holder Name",
242            floating: false,
243            size: 12,
244            row: 0,
245            order: 0
246          }
247        }
248      },
249      functionCallBackSuccess: function (response) {
250        console.log(response);
251        switch (response.responseText) {
252          case "Success":
253            alert(`Success: ${response.responseData.resultText}`);
254            break;
255          case "Declined":
256            alert(`Declined: ${response.responseData.resultText}`);
257            payComponent.payabliExec("reinit");
258            break;
259          default:
260            alert(`Error: ${response.responseText}`);
261            payComponent.payabliExec("reinit");
262            break;
263        }
264      },
265      functionCallBackError: function(errors) {
266        console.log("Payment error:", errors);
267        alert("Payment processing error occurred");
268        payComponent.payabliExec("reinit");
269      },
270      functionCallBackReady: function(data) {
271        const btn = document.getElementById("submit-btn");
272        if (data[1] === true) {
273          btn.classList.remove("hidden");
274        } else {
275          btn.classList.add("hidden");
276        }
277      }
278    };
279  </script>
280</body>
281</html>

/// Add Tab Switching Logic

Add JavaScript code for the tabs. The code handles reinitializing the component when users change payment methods.

-298
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <div class="payment-container">
57    <div class="tabs">
58      <button class="tab active" data-method="card">Payment Card</button>
59      <button class="tab" data-method="ach">Bank Debit</button>
60      <button class="tab" data-method="rdc">Check Capture</button>
61    </div>
62    <div class="form-content">
63      <div id="pay-component-1"></div>
64      <button id="submit-btn" class="hidden">Process Payment</button>
65    </div>
66  </div>
67
68  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
69  <script>
70    let payComponent;
71
72    const cardConfig = {
73      type: "methodEmbedded",
74      rootContainer: "pay-component-1",
75      token: "your-public-api-token",
76      entryPoint: "your-entry-point",
77      defaultOpen: "card",
78      temporaryToken: false,
79      card: {
80        enabled: true,
81        amex: true,
82        discover: true,
83        visa: true,
84        mastercard: true,
85        jcb: true,
86        diners: true,
87        inputs: {
88          cardHolderName: {
89            label: "NAME ON CARD",
90            size: 12,
91            row: 0,
92            order: 0
93          },
94          cardNumber: {
95            label: "CARD NUMBER",
96            size: 6,
97            row: 1,
98            order: 0
99          },
100          cardExpirationDate: {
101            label: "EXPIRATION",
102            size: 6,
103            row: 1,
104            order: 1
105          },
106          cardCvv: {
107            label: "CVV",
108            size: 6,
109            row: 2,
110            order: 0
111          },
112          cardZipcode: {
113            label: "ZIP CODE",
114            size: 6,
115            row: 2,
116            order: 1
117          }
118        }
119      },
120      functionCallBackSuccess: function (response) {
121        console.log(response);
122        switch (response.responseText) {
123          case "Success":
124            alert(`Success: ${response.responseData.resultText}`);
125            break;
126          case "Declined":
127            alert(`Declined: ${response.responseData.resultText}`);
128            payComponent.payabliExec("reinit");
129            break;
130          default:
131            alert(`Error: ${response.responseText}`);
132            payComponent.payabliExec("reinit");
133            break;
134        }
135      },
136      functionCallBackError: function(errors) {
137        console.log("Payment error:", errors);
138        alert("Payment processing error occurred");
139        payComponent.payabliExec("reinit");
140      },
141      functionCallBackReady: function(data) {
142        const btn = document.getElementById("submit-btn");
143        if (data[1] === true) {
144          btn.classList.remove("hidden");
145        } else {
146          btn.classList.add("hidden");
147        }
148      }
149    };
150
151    const achConfig = {
152      type: "methodEmbedded",
153      rootContainer: "pay-component-1",
154      token: "your-public-api-token",
155      entryPoint: "your-entry-point",
156      defaultOpen: "ach",
157      temporaryToken: false,
158      ach: {
159        enabled: true,
160        checking: true,
161        savings: true,
162        inputs: {
163          achAccountHolderName: {
164            label: "ACCOUNT HOLDER NAME",
165            placeholder: "Account Holder Name",
166            floating: false,
167            size: 6,
168            row: 0,
169            order: 0
170          },
171          achRouting: {
172            label: "ROUTING NUMBER",
173            placeholder: "123456789",
174            floating: false,
175            size: 6,
176            row: 1,
177            order: 0
178          },
179          achAccount: {
180            label: "ACCOUNT NUMBER",
181            placeholder: "Account Number",
182            floating: false,
183            size: 6,
184            row: 1,
185            order: 1
186          },
187          achAccountType: {
188            label: "ACCOUNT TYPE",
189            floating: false,
190            size: 6,
191            row: 0,
192            order: 1
193          }
194        }
195      },
196      functionCallBackSuccess: function (response) {
197        console.log(response);
198        switch (response.responseText) {
199          case "Success":
200            alert(`Success: ${response.responseData.resultText}`);
201            break;
202          case "Declined":
203            alert(`Declined: ${response.responseData.resultText}`);
204            payComponent.payabliExec("reinit");
205            break;
206          default:
207            alert(`Error: ${response.responseText}`);
208            payComponent.payabliExec("reinit");
209            break;
210        }
211      },
212      functionCallBackError: function(errors) {
213        console.log("Payment error:", errors);
214        alert("Payment processing error occurred");
215        payComponent.payabliExec("reinit");
216      },
217      functionCallBackReady: function(data) {
218        const btn = document.getElementById("submit-btn");
219        if (data[1] === true) {
220          btn.classList.remove("hidden");
221        } else {
222          btn.classList.add("hidden");
223        }
224      }
225    };
226
227    const rdcConfig = {
228      type: "methodEmbedded",
229      rootContainer: "pay-component-1",
230      token: "your-public-api-token",
231      entryPoint: "your-entry-point",
232      defaultOpen: "rdc",
233      temporaryToken: false,
234      card: { enabled: true },
235      rdc: {
236        enabled: true,
237        amount: 100,
238        inputs: {
239          rdcAccountHolderName: {
240            label: "ACCOUNT HOLDER NAME",
241            placeholder: "Account Holder Name",
242            floating: false,
243            size: 12,
244            row: 0,
245            order: 0
246          }
247        }
248      },
249      functionCallBackSuccess: function (response) {
250        console.log(response);
251        switch (response.responseText) {
252          case "Success":
253            alert(`Success: ${response.responseData.resultText}`);
254            break;
255          case "Declined":
256            alert(`Declined: ${response.responseData.resultText}`);
257            payComponent.payabliExec("reinit");
258            break;
259          default:
260            alert(`Error: ${response.responseText}`);
261            payComponent.payabliExec("reinit");
262            break;
263        }
264      },
265      functionCallBackError: function(errors) {
266        console.log("Payment error:", errors);
267        alert("Payment processing error occurred");
268        payComponent.payabliExec("reinit");
269      },
270      functionCallBackReady: function(data) {
271        const btn = document.getElementById("submit-btn");
272        if (data[1] === true) {
273          btn.classList.remove("hidden");
274        } else {
275          btn.classList.add("hidden");
276        }
277      }
278    };
279
280    // Tab switching
281    document.querySelectorAll('.tab').forEach(tab => {
282      tab.addEventListener('click', function() {
283        const method = this.dataset.method;
284
285        // Update active tab
286        document.querySelectorAll('.tab').forEach(t => t.classList.remove('active'));
287        this.classList.add('active');
288
289        // Create new component with appropriate config
290        if (method === 'card') {
291          payComponent = new PayabliComponent(cardConfig);
292        } else if (method === 'ach') {
293          payComponent = new PayabliComponent(achConfig);
294        } else if (method === 'rdc') {
295          payComponent = new PayabliComponent(rdcConfig);
296        }
297      });
298    });
299  </script>
300</body>
301</html>

/// Initialize and Execute Payment

Use the payabliExec method to perform payment processing logic. The final step creates a working payment form that can process real transactions or save payment methods securely.

-322
1<!DOCTYPE html>
2<html>
3<head>
4  <meta charset="UTF-8">
5  <title>Payabli Integration</title>
6  <style>
7    .tabs {
8      display: flex;
9      border-bottom: 1px solid #e5e5e5;
10      margin-bottom: 20px;
11    }
12
13    .tab {
14      flex: 1;
15      padding: 16px 24px;
16      text-align: center;
17      cursor: pointer;
18      background: white;
19      border: none;
20      border-bottom: 2px solid transparent;
21      transition: all 0.2s ease;
22    }
23
24    .tab:hover {
25      color: #333;
26      background: #f8f9fa;
27    }
28
29    .tab.active {
30      color: #007bff;
31      border-bottom-color: #007bff;
32    }
33
34    .hidden {
35      display: none;
36    }
37
38    #submit-btn {
39      background: #4f46e5;
40      color: white;
41      padding: 12px 24px;
42      border: none;
43      border-radius: 6px;
44      cursor: pointer;
45      margin-top: 16px;
46    }
47
48    #submit-btn:disabled {
49      background: #9ca3af;
50      cursor: not-allowed;
51    }
52  </style>
53</head>
54<body>
55  <h1>Payment Form</h1>
56  <p>Enter your payment information below:</p>
57  <div class="payment-container">
58    <div class="tabs">
59      <button class="tab active" data-method="card">Payment Card</button>
60      <button class="tab" data-method="ach">Bank Debit</button>
61      <button class="tab" data-method="rdc">Check Capture</button>
62    </div>
63    <div class="form-content">
64      <div id="pay-component-1"></div>
65      <button id="submit-btn" class="hidden">Process Payment</button>
66    </div>
67  </div>
68
69  <script src="https://embedded-component-sandbox.payabli.com/component.js" data-test></script>
70  <script>
71    let payComponent;
72
73    const cardConfig = {
74      type: "methodEmbedded",
75      rootContainer: "pay-component-1",
76      token: "your-public-api-token",
77      entryPoint: "your-entry-point",
78      defaultOpen: "card",
79      temporaryToken: false,
80      card: {
81        enabled: true,
82        amex: true,
83        discover: true,
84        visa: true,
85        mastercard: true,
86        jcb: true,
87        diners: true,
88        inputs: {
89          cardHolderName: {
90            label: "NAME ON CARD",
91            size: 12,
92            row: 0,
93            order: 0
94          },
95          cardNumber: {
96            label: "CARD NUMBER",
97            size: 6,
98            row: 1,
99            order: 0
100          },
101          cardExpirationDate: {
102            label: "EXPIRATION",
103            size: 6,
104            row: 1,
105            order: 1
106          },
107          cardCvv: {
108            label: "CVV",
109            size: 6,
110            row: 2,
111            order: 0
112          },
113          cardZipcode: {
114            label: "ZIP CODE",
115            size: 6,
116            row: 2,
117            order: 1
118          }
119        }
120      },
121      functionCallBackSuccess: function (response) {
122        console.log(response);
123        switch (response.responseText) {
124          case "Success":
125            alert(`Success: ${response.responseData.resultText}`);
126            break;
127          case "Declined":
128            alert(`Declined: ${response.responseData.resultText}`);
129            payComponent.payabliExec("reinit");
130            break;
131          default:
132            alert(`Error: ${response.responseText}`);
133            payComponent.payabliExec("reinit");
134            break;
135        }
136      },
137      functionCallBackError: function(errors) {
138        console.log("Payment error:", errors);
139        alert("Payment processing error occurred");
140        payComponent.payabliExec("reinit");
141      },
142      functionCallBackReady: function(data) {
143        const btn = document.getElementById("submit-btn");
144        if (data[1] === true) {
145          btn.classList.remove("hidden");
146        } else {
147          btn.classList.add("hidden");
148        }
149      }
150    };
151
152    const achConfig = {
153      type: "methodEmbedded",
154      rootContainer: "pay-component-1",
155      token: "your-public-api-token",
156      entryPoint: "your-entry-point",
157      defaultOpen: "ach",
158      temporaryToken: false,
159      ach: {
160        enabled: true,
161        checking: true,
162        savings: true,
163        inputs: {
164          achAccountHolderName: {
165            label: "ACCOUNT HOLDER NAME",
166            placeholder: "Account Holder Name",
167            floating: false,
168            size: 6,
169            row: 0,
170            order: 0
171          },
172          achRouting: {
173            label: "ROUTING NUMBER",
174            placeholder: "123456789",
175            floating: false,
176            size: 6,
177            row: 1,
178            order: 0
179          },
180          achAccount: {
181            label: "ACCOUNT NUMBER",
182            placeholder: "Account Number",
183            floating: false,
184            size: 6,
185            row: 1,
186            order: 1
187          },
188          achAccountType: {
189            label: "ACCOUNT TYPE",
190            floating: false,
191            size: 6,
192            row: 0,
193            order: 1
194          }
195        }
196      },
197      functionCallBackSuccess: function (response) {
198        console.log(response);
199        switch (response.responseText) {
200          case "Success":
201            alert(`Success: ${response.responseData.resultText}`);
202            break;
203          case "Declined":
204            alert(`Declined: ${response.responseData.resultText}`);
205            payComponent.payabliExec("reinit");
206            break;
207          default:
208            alert(`Error: ${response.responseText}`);
209            payComponent.payabliExec("reinit");
210            break;
211        }
212      },
213      functionCallBackError: function(errors) {
214        console.log("Payment error:", errors);
215        alert("Payment processing error occurred");
216        payComponent.payabliExec("reinit");
217      },
218      functionCallBackReady: function(data) {
219        const btn = document.getElementById("submit-btn");
220        if (data[1] === true) {
221          btn.classList.remove("hidden");
222        } else {
223          btn.classList.add("hidden");
224        }
225      }
226    };
227
228    const rdcConfig = {
229      type: "methodEmbedded",
230      rootContainer: "pay-component-1",
231      token: "your-public-api-token",
232      entryPoint: "your-entry-point",
233      defaultOpen: "rdc",
234      temporaryToken: false,
235      card: { enabled: true },
236      rdc: {
237        enabled: true,
238        amount: 100,
239        inputs: {
240          rdcAccountHolderName: {
241            label: "ACCOUNT HOLDER NAME",
242            placeholder: "Account Holder Name",
243            floating: false,
244            size: 12,
245            row: 0,
246            order: 0
247          }
248        }
249      },
250      functionCallBackSuccess: function (response) {
251        console.log(response);
252        switch (response.responseText) {
253          case "Success":
254            alert(`Success: ${response.responseData.resultText}`);
255            break;
256          case "Declined":
257            alert(`Declined: ${response.responseData.resultText}`);
258            payComponent.payabliExec("reinit");
259            break;
260          default:
261            alert(`Error: ${response.responseText}`);
262            payComponent.payabliExec("reinit");
263            break;
264        }
265      },
266      functionCallBackError: function(errors) {
267        console.log("Payment error:", errors);
268        alert("Payment processing error occurred");
269        payComponent.payabliExec("reinit");
270      },
271      functionCallBackReady: function(data) {
272        const btn = document.getElementById("submit-btn");
273        if (data[1] === true) {
274          btn.classList.remove("hidden");
275        } else {
276          btn.classList.add("hidden");
277        }
278      }
279    };
280
281    // Tab switching
282    document.querySelectorAll('.tab').forEach(tab => {
283      tab.addEventListener('click', function() {
284        const method = this.dataset.method;
285
286        // Update active tab
287        document.querySelectorAll('.tab').forEach(t => t.classList.remove('active'));
288        this.classList.add('active');
289
290        // Create new component with appropriate config
291        if (method === 'card') {
292          payComponent = new PayabliComponent(cardConfig);
293        } else if (method === 'ach') {
294          payComponent = new PayabliComponent(achConfig);
295        } else if (method === 'rdc') {
296          payComponent = new PayabliComponent(rdcConfig);
297        }
298      });
299    });
300
301    // Initialize the Payabli component
302    payComponent = new PayabliComponent(cardConfig);
303
304    // Handle payment execution
305    document.getElementById("submit-btn").addEventListener("click", function() {
306      payComponent.payabliExec('pay', {
307        paymentDetails: {
308          totalAmount: 100.00,
309          serviceFee: 0,
310          categories: [{
311            label: "payment",
312            amount: 100.00,
313            qty: 1
314          }]
315        },
316        customerData: {
317          firstName: "John",
318          lastName: "Doe",
319          billingEmail: "john.doe@example.com"
320        }
321      });
322    });
323  </script>
324</body>
325</html>

Configuration reference

These are the configuration parameters available for the EmbeddedMethod component. If you need to pass more than data than what’s supported, consider using the temporary token flow. See Temporary Token Flow for more information.

type
stringRequired

This value determines the type of embedded component to render.
Accepted values are: methodEmbedded, methodLightbox, vterminal, or expressCheckout.
For the EmbeddedMethod UI, this value is methodEmbedded. See the Embedded Components Overview for more information on other component types.

rootContainer
stringRequired

Container ID used for the component.

defaultOpen
string

Sets the default payment method that’s shown. Accepted values are: card or ach.

hideComponent
booleanDefaults to false

When true the component is hidden when it’s instanced.

token
stringRequired

API token for authentication. This should be a public API token, as described here.

forceCustomerCreation
booleanDefaults to true

When true, the component uses the customerData object to create a new customer record. When temporaryToken is true and forceCustomerCreation is false, the component doesn’t create a new customer record. See Temporary Token Flow for more information.

customCssUrl
string

Complete URL of a custom CSS stylesheet to use with the component.

clearFormAfterSubmit
booleanDefaults to true

When true, the entered values on the form are cleared when submitted.

temporaryToken
booleanDefaults to true

When true, the token created for the payment is temporary. Set this parameter to false to create a storedMethodId and save the payment profile.

showPopoverError
booleanDefaults to true

When false, the validation error appears below the field instead of above it in a popover.

entryPoint
string

When the API token belongs to an organization, the entrypoint name identifies the target paypoint (merchant).

card
objectRequired

cardService object used to configure accepted card types.

enabled
boolean

Enable/disable card option.

amex
boolean

Enable/disable acceptance of American Express cards.

discover
boolean

Enable/disable acceptance of Discover cards.

visa
boolean

Enable/disable acceptance of Visa cards.

mastercard
boolean

Enable/disable acceptance of MasterCard cards.

diners
boolean

Enable/disable acceptance of Diner’s Club cards.

jcb
boolean

Enable/disable acceptance of JCB cards.

inputs
object

Card input fields descriptors. This object applies only to the EmbeddedMethod UI component.

cardHolderName
object

Optional, but strongly recommended. Descriptor object for input field.

cardNumber
objectRequired

Descriptor object for input field.

cardExpirationDate
objectRequired

Descriptor object for input field.

cardCvv
objectRequired

Descriptor object for input field.

cardZipcode
object

Optional, but strongly recommended. Descriptor object for input field.

ach
objectRequired

achService object used to configure accepted ACH types.

enabled
boolean

Enable/disable ACH option.

checking
boolean

Enable/disable acceptance of Checking account.

savings
boolean

Enable/disable acceptance of Savings account.

achValidation
booleanDefaults to false

When set to true, the embedded component will validate ACH account and routing numbers in real time. This is an add-on feature. Contact the Payabli team for more information.

inputs
object

ACH input field descriptors. This only applies to the EmbeddedMethod UI component.

achAccountHolderName
objectRequired

Required. Descriptor object for input field.

achAccountType
objectRequired

Required. Descriptor object for input field.

achRouting
objectRequired

Required. Descriptor object for input field. Use the confirm input descriptor to add matching validation to this field. See Style Individual Fields for more.

achAccount
objectRequired

Required. Descriptor object for input field. Use the confirm input descriptor to add matching validation to this field. See Style Individual Fields for more.

rdc
objectRequired

rdcService object used to configure accepted RDC types.

enabled
boolean

Enable/disable RDC option.

amount
number

Amount to collect via RDC.

inputs
object

RDC input field descriptors.

rdcAccountHolderName
object

Descriptor object for input field.

paymentMethod
objectRequired

paymentMethod object with data related to the payment method. Required when saving a payment method or executing a payment. Can be passed to the component via payabliExec method.

customerData
objectRequired

Customer Object with data related to customer. Can be passed to the component as a parameter with the payabliExec method. Required when saving a payment method. Which fields are required depends on whether the paypoint has custom identifiers. If you aren’t using custom identifiers, then you must include at least one of these values: firstname and lastname, email, or customerId.

paymentDetails
objectRequired

paymentDetails object with data related to the payment. Required to save a payment method. Can be passed to the component via payabliExec method.

fallbackAuth
boolean | nullDefaults to false

When true, if tokenization fails, Payabli will attempt an authorization transaction to request a permanent token for the card. If the authorization is successful, the card will be tokenized and the authorization will be voided automatically.

fallbackAuthAmount
number | nullDefaults to 1.00

The amount for the fallbackAuth transaction. Defaults to one dollar.

functionCallBackSuccess
function

The callback function called when the component executes successfully.

functionCallBackError
function

The callback function called when the component receives an error. See functionCallBackError response in the next section for a complete reference.

functionCallBackReady
function

The callback function called when the component’s status changes. Used to poll the form’s completeness before showing the submit button.

Response

The embedded component returns a response object to the callback functions defined in the configuration. The response object contains the result of the transaction (success, declined, or error) and details about the transaction.

Response examples

Click the tab to see an example response returned by the embedded component for each result.

1{
2  responseText: "Success",
3  responseData: {
4    authCode: "123456",
5    referenceId: "40-692c62895d1541d28c0bf77b275a26e4",
6    resultCode: 1,
7    resultText: "Approved",
8    avsResponseText: "",
9    cvvResponseText: "",
10    customerId: 706,
11    methodReferenceId: null
12  }
13}

Response reference

The response object passed to a callback function has the following structure:

responseText
string

“Success” or “Declined”

responseData
object

Container for response details.

responseData.AuthCode
string

Authorization code for payments. This field has a value of null for saved payment methods.

responseData.ReferenceId
string

Identifier for the transaction (for payments) or the stored payment method (for save payment method).

responseData.ResultCode
integer

Result of operation. 1 is success, 2 is declined, and 3 is error.

responseData.ResultText
string

Message related the result. If the operation was successful, it returns “Added”/“Approved”. If there was an error, it returns error details.

responseData.AvsResponseText
string

Result of address validation for card transactions. This field is an empty string when processing ACH transactions. This field doesn’t exist when saving payment methods.

responseData.CvvResponseText
string

Result of CVV validation for card transactions. This field is an empty string when processing ACH transactions. This field doesn’t exist when saving payment methods.

responseData.CustomerId
integer

ID for the customer owner of payment or saved payment method.

responseData.methodReferenceId
string

Identifier for stored payment method for saved payment methods. This field has a value of null for payment transactions. The methodReferenceId is used as the storedMethodId in other operations. See Handling responses and errors for more.

functionCallBackError response

The functionCallBackError function is called when the component can’t validate the payment information before submitting it to Payabli’s API. The response object passed to functionCallBackError contains an array with codes, keys, and descriptions of failed validations. You can check the values in the array to offer your customized error message.

CodeKeyDescription
802paymentMethodsCardNumberErrorError in Card number field
803paymentMethodsCardExpirationDateErrorError in Card Expiration field
804paymentMethodsCardCvvErrorError in CardCVV field
805paymentMethodsCardZipcodeErrorError in Card Zip code field
901paymentMethodsAchAccountHolderNameErrorError in ACH Holder field
902paymentMethodsAchAccountTypeErrorError in ACH Account type field
903paymentMethodsAchRoutingErrorError in ACH Routing field
904paymentMethodsAchAccountErrorError in ACH Account number field

Usage Flows

These flowcharts illustrate the path to making a payment or storing a payment method using an embedded component.

Make a payment

To make a payment with an embedded component, your component configuration should contain payabliExec(pay, parameters). In the parameters argument, include customerData and paymentDetails objects. When the payment is executed, the request returns response data.

This flowchart explains the basic steps for the task. Hover over a step for more information.

Run payabliExec(pay, parameters) The action is set to pay here. Send the paymentDetail and customerData object in parameters.

→

Payment executed The transaction is executed and includes the data sent as parameters

→

Response

Save a payment method

To save a payment method with an embedded component, your component configuration should contain payabliExec(method, parameters). In the parameters argument, include customerData and paymentDetails objects. When the payment method is saved, the request returns response data.

This flowchart explains the basic steps for the task. Hover over a step for more information.

Run payabliExec(method, parameters) The action is set to method here. Send the paymentDetail and customerData object in parameters.

→

Payment method saved The payment method is saved and includes the data sent as parameters

→

Response

Save a payment method and make a payment

You can save a payment method and make a payment with the EmbeddedMethod UI component by writing a callback function to execute the payment after successfully saving the payment method.

To save a payment method and then execute a transaction with the saved payment method, your component configuration should contain payabliExec(method, parameters). In the parameters argument, include the customerData and paymentDetails objects. When the payment method is saved, use a callback function to execute the transaction.

Remember to never make payment transactions via client-side API requests. Your callback function should make the payment transaction using a server-side function.

This flowchart explains the basic steps for the task. Hover over a step for more information.

Run payabliExec(method, parameters) Here, the action is set to method. Send the paymentDetail and customerData object in parameters.

→

Payment method saved The payment method is saved and includes the data sent as parameters. An ID for the payment method is returned, which is then used to make transactions.

→

Callback function Use a callback function to send a transaction that uses the new payment method.

→

Response

See related resources to help you get the most out of Payabli.
